“PERFORMANCE UNEQUALED”

HOW THE AQUA SAFE SEWAGE TREATMENT

SYSTEM FUNCTIONS

The Aqua Safe individual home sewage treatment system is an inex-

pensive self-contained wastewater treatment system that features an

aeration process which reduces sewage to an odorless, safe discharge in 24 hours.

Aqua Safe was tested according to requirements listed in N.S.F./A.N.S.I. Standard #40 and meets or exceeds Class 1 characteristic requirements. Due to it’s efficiency, it has become the standard of comparison. The Aqua Safe sewage treatment plant in many ways is a scaled down version of larger township and municipality sewage treatment plants. It employs an extended aeration activated sludge process. This type of treatment depends primarily upon the use of air that is introduced by passing air from the blower to four (4) air lines located around the perimeter of the mixing chamber.

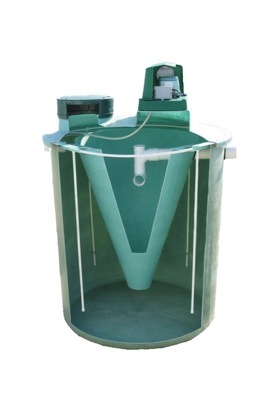

Ecological Tanks, Inc., Aqua Safe plants are made up of an outer mixing tank and a center settling chamber called a clarifier. Raw unsettled wastewater from your home enters directly into the mixing tank where simple hydraulic displacement is accomplished by the introduction of air which promotes the growth of aerobic organisms in much larger amounts than would occur naturally . These break down the organic solids in the wastewater. From the outer mixing tank or aeration chamber, mixed liquid enters the cone shaped settling chamber, better known as the clarifier, from the bottom. No mixing occurs in this quiet zone where solids separate from the liquid and settle to the bottom of the clarifier and re-enter the mixing chamber. The liquid that separates from the solids in the clarifier continue to flow upward to the discharge pipe.

The results of the Aqua Safe process is a clear, odorless effluent discharge, which meets or exceeds state and local water quality standards.

“The standard by which the performance of other

units is compared”®



Low Cost Installation

Odor  Free Clear Discharge

Low Operating Cost

Protects the Environment

Specially designed alarms and control boxes

Fiberglass Construction

No diffusers to clean

Access ports strategically located to minimize maintenance time

High efficiency 98.6% removal of sewage contaminants

Quiet, Trouble-Free - No Moving Parts in AerationTank

PATENTED

WE ALSO OFFER:

EXT SERVICE PLANS

PUMP REPAIRS AND SALES

SEPTIC RETROFITS

24/7 EMERGENCY SERVICES

PUMP TANKS

NON-POTABLE IRRIGATION SYSTEMS

500 600 750 GPD

SYSTEMS IN STOCK

1000 1500 GPD

ORDER ONLY
